PRESSURED SEALED PENETRATOR

A reliable sealing solution and which may be quickly installed within wellhead.

AT-1FS

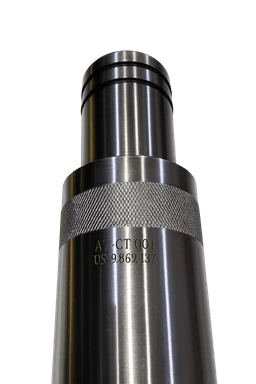

WELLHEAD PENETRATOR

The “AT-1-FS UNIVERSAL WELLHEAD PENETRATOR” The Floating Seat System allows for dynamic seal.

Rated to 5000 psi WP509° F - 265°C5,000 volts AC

+0Units Installed to date

+0Countries worldwide, where they have been installed

+0Years of experience

0%Reliable and effective

Features

AT-1FS System

Don’t have Splice,

NO Connection

Inside the well below the hanger thus NO FAILURE in the electrical circuit.

Not a special order for hazardous and severe service/environment use.

System is rated at the pump cable rating, up to 5KV.

Lower feedthrough connector is 316 SS NACE MR 0175

Environment conditions: Concentration 100% CO2 gas or liquid and 65,000 PPM H2S. (Other metallurgies available upon request); upper connector is cast aluminum.

Materials

Available in various elastomer materials following customer standards.
Temperature rating from 392°F to 650°F. (200⁰C to 343⁰C)

Mechanicas

Optional 90° upper connector reduces clearance issues.
Short lower mechanical seal connector needs less clearance room.
Accommodates any ESP cable size conductor and flat or round profiles and different types of conductor barriers
Pressure rating is 5,000 PSI.

Eletrical

Rated to maximum voltage and amperage ratings of the actual customer-supplied cabling or Ahow Tech supplied surface cable. Standard voltage rating of seals is 5,000 volts AC.
Junction box (surface connection box) is available in different hazardous environment classifications. Class 1, Division 1 or Class 1, Division 2. and can connect to any size Flat, Round or submarine Power surface Cable.
